GEPARD GPR

GEPARD GPR 3D from OKM – Germany is a new type of 3D ground scanners

with unique technology and powerful features and performance for all detection applications.

GEPARD GPR 3D use a powerful ground penetrating radar technology

that offer great scan depth range that may reach up to 40 meters underground.

GEPARD GPR 3D with its features set, offer for the professional prospectors

or even companies or organizations, many practical uses for the detection of

underground objects like pipelines, cavities, cables, conduits, tunnels, bunkers and metals

Gepard GPR 3D Features

– Detection Technology

GEPARD GPR 3D is a ground penetrating radar

that use an omnidirectional unshielded transmission system

to reach maximum depths up to 40 meters (131 ft).

The RADAR (Radio Detection and Ranging) of the Gerard GPR 3D sends a signal

into the ground and awaits the reflection or echo of the signal to detect sub-surface anomalies.

This technology uses a multiple transmission frequency range starting at 60 MHz

up to 300 MHz which is realized by adjustable telescopic antennas.

Also The device supports many automatic adjustments to optimize ground scans

on specific soil types such as rocky or sandy soils, which makes the handling of the Gepard ground radar very easy.

So the user just set required depth resolution and start the scan process easily.

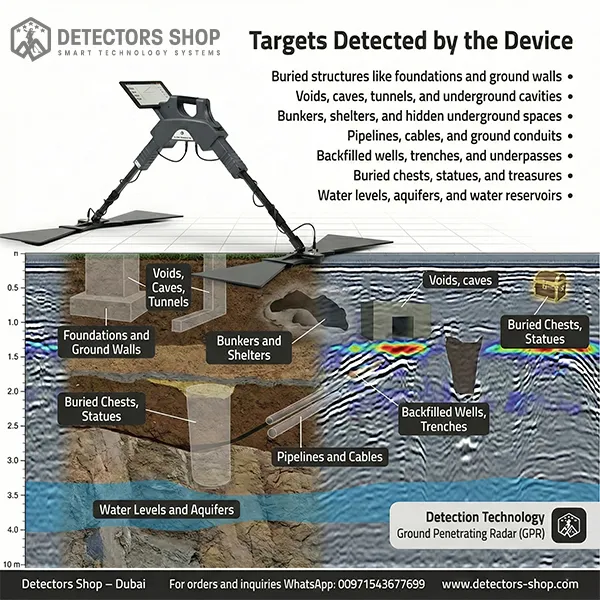

– Device Applications & Uses

• Detection of underground walls, basements and concrete reinforcements.
• Detect buried pipelines, conduits and cable harnesses
• Detection of buried treasure chests, statues …
• Find hidden cavities, graves and sepulchers
• Detection of secret tunnels, bunkers and shelters
• Find water level and underground rivers and aquifers

– Android App for Scanned Data Analaysis

The agile and compact unit of GEPARD GPR 3D can easily be operated

by a single user via bundled Android Tablet PC.

Also the measured data is immediately transferred to the tablet, the Android application

receives the data wirelessly via WiFi technology and displays it directly on its screen.

The analysis app offers the option of integrating a GPS signal or Google Maps,

filtering automatically and entering notes for later recollection of specific scan details.

Additionally, the automatic filtering option improves the results of scan and

assists in finding hidden objects and structures more easily.

Due to the integrated GPS all scan positions can be stored along with the scan data.

The Android software application user interface is available in the following languages:

• English
• French
• German
• Spanish
• Polish
• Russian
• Italian
• Persian
• Arabic
• Chinese
